Basic offers innovative solutions for water and heat metering to help you bill tenants accurately as well as reducing enery comsumption

Air Conditioner Charge Solution

The variable air volume (VAV) air conditioner charge solution can adjust the indoor temperature and humidity through changing the air volume. The solution consists of FMU-VAV and BSH2000 integrated energy manage systems, which can collect VAV air volume data and achieve unified billing and management.

This system also has the following functions:
  • Support timeshare billing
  • Support four settlement rate at most
  • Can set the air supply temperature of AHU and this temperature could be the start temperature of VAC billing. For example, if the air supply temperature is set as 15℃, the system will start billing when the air supply temperature is below 15℃.

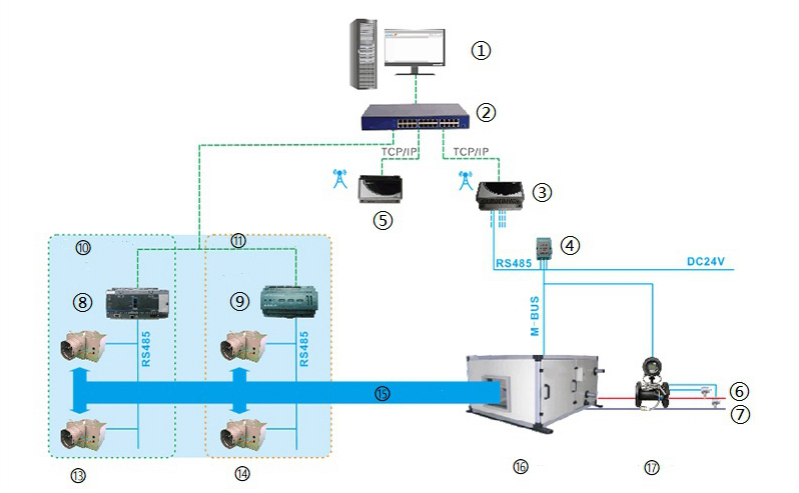

System structure
Air Conditioner Charge Solution
  • ① System software
  • ② Exchanger
  • ③ FMU
  • ④ Convertor
  • ⑤ FMU-VAV system
  • ⑥ Water outflow
  • ⑦ Water inflow
  • ⑧ BACENT/IP network controller
  • ⑨ Lonworks/IP network controller
  • ⑩ Bacent system
  • ⑪ Lonworks system
  • ⑫ AHU
  • ⑬ VAV-BOX
  • ⑭ VAV-BOX
  • ⑮ AHU
  • ⑯ Heat meter
