Ultrasonic Heat Meter, 230 Series(Brass, Threaded Type)

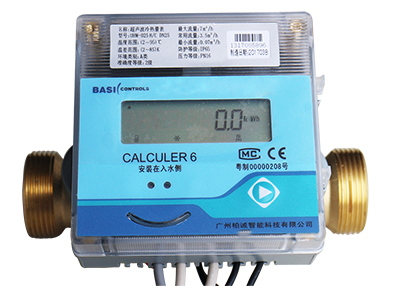

Ultrasonic Heat Meter, 230 Series (Brass, Threaded Type)

The ultrasonic heat meter 230 series (brass, threaded type) has a brass line, featuring outstanding resistance to oxidation and wear. Thus, this ultrasonic heat meter is more resistant to corrosion and compact of the flow, for longer service life. Besides, this series heat meter is designed with a small size to save installation space.

Parameters
  • Line material: brass
  • Connection type: threaded type
  • Nominal diameter range: DN15-DN40
  • Pressure rating: PN16/PN25
  • Water-proof grade: IP65
  • Power supply: M-BUS + built-in lithium battery or DC240V+ built-in lithium battery or built-in lithium battery power supply
External dimension

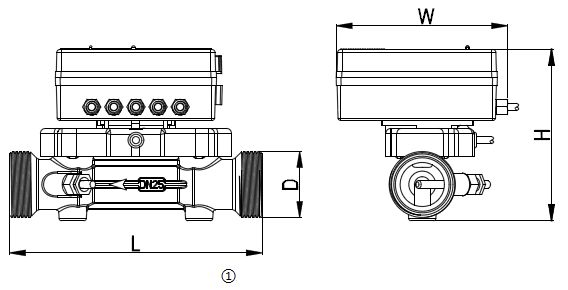

  • Ultrasonic Heat Meter, 230 Series (Brass, Threaded Type) ① Compact type

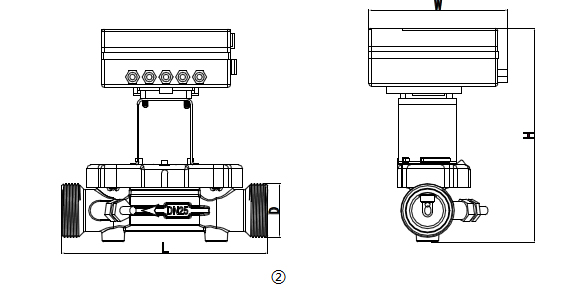

  • Ultrasonic Heat Meter, 230 Series (Brass, Threaded Type) ② Frame type
Flow rate code Nominal diameter DN Length without connecting pipe L Connecting thread D Compact type meter height H Frame type meter height H Meter width W Weight Overload flow Normal flow Min. flow
N2.5 20mm 130mm G1B 101mm 156mm 108mm 1.3KG 5qmax(m3/h) 2.5qp(m3/h) 0.05qmin(m3/h)
N 3.5 25mm 160mm G1 1/4B 106mm 161mm 108mm 1.8KG 7qmax(m3/h) 3.5qp(m3/h) 0.07qmin(m3/h)
N 6 32mm 180mm G1 1/2B 113mm 168mm 108mm 2.3KG 12qmax(m3/h) 6qp(m3/h) 0.12qmin(m3/h)
N10 40mm 200mm G2B 121mm 176mm 108mm 3.1KG 20qmax(m3/h) 10qp(m3/h) 0.2qmin(m3/h)
