Electromagnetic Flow Meter

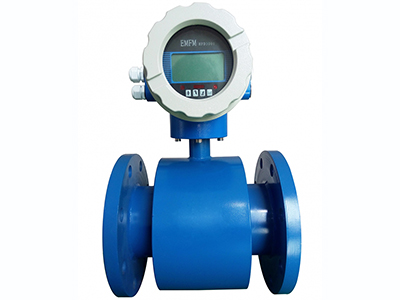

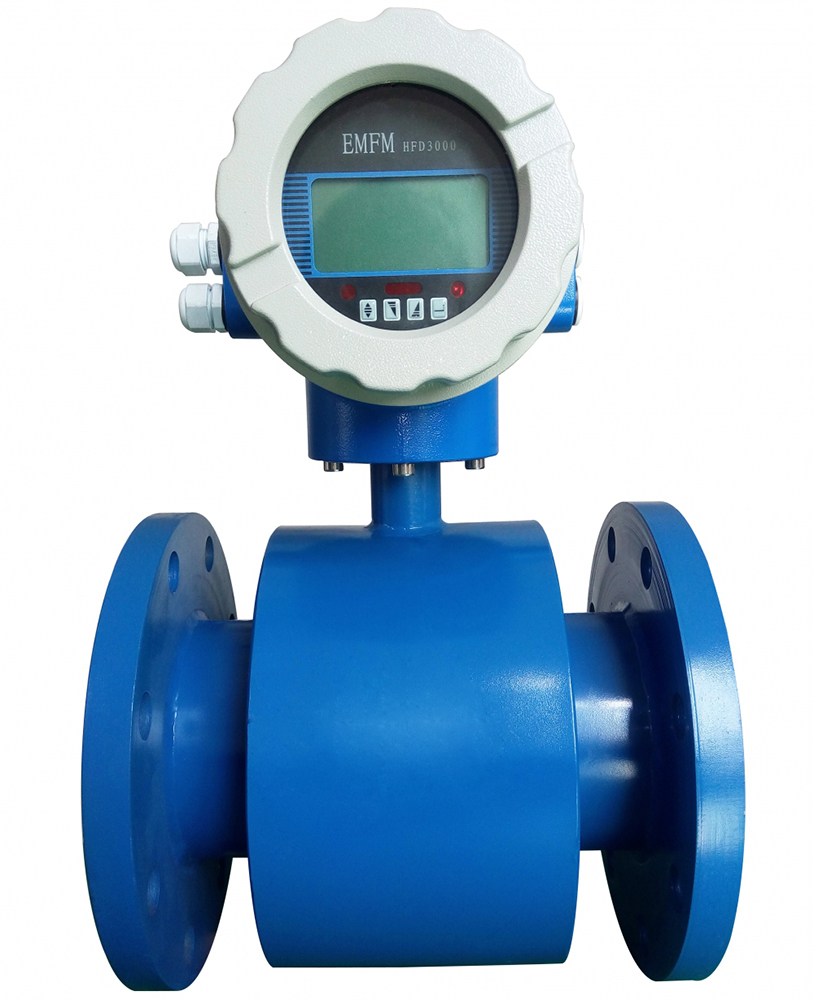

Electromagnetic flow meter features compact structure, integrating the flow sensor and calculator. Its calculator is of vertical type, bringing convenience for users to read data even at a distance.

The measuring principle of this electromagnetic flow meter is on the basis of Faraday’s law of electromagnetic induction. It is suitable for measuring the volume flow of conductive fluids in a closed pipe, such as tap water, industrial water, seawater, waste water, different acid, alkaline and saltine solutions, etc. Thus, this flow meter has wider applications in industrial water drainage, environmental protection, water conservancy, iron and steel, petroleum, chemical engineering and other fields.

Technical parameters

Nominal diameter	DN15-DN1000
Accuracy class	1.0 class
Rated working pressure	1.6Mpa
Total power consumption	20W
Output current	4-20mA
Flow direction	Forward, backward and net flow
Protection grade	IP65
Working temperature	-10℃～+60℃
Relative humidity	5%～95%
Min. Straight pipe length	Upstream straight pipe: 5D; downstream straight pipe: 3D
Connection mode	Flange type
Power supply	DC24V@≥1A AC220V 50HZ
Communication interface	Rs485
Communication protocol	ModBus-RTU
Environmental class	A class
Electrode materials	316
Electrical environment	Satisfy the requirements of CJ128-200.6.12

Features

Flexible parameter setting, the flow sensor is interchangeable.
High measuring precision: the measurement is not affected by the variation of fluid density, viscosity, temperature, pressure and conductivity.
There is no moving parts or choke parts, thus having no pressure loss and of long life span.
Basic Controls provides two kinds of lining materials for customers.
Electromagnetic flow meter has functions of self-inspecting and self-diagnosis.
Electromagnetic flow meter has a function of bidirectional flow measuring, capable of showing the forward and backward flows.
This flow meter is of outstanding electromagnetic immunity. This allows it to operate normally even under a condition of 100KA/m magnetic field strength.

Lining materials

Lining material	Name	Property	Max. Working temperature	Applicable fluid	Applicable nominal diameter
Rubber	Chloroprene rubber	Moderate wear resistance, resistant to corrosion of low concentration acid, alkali and base.	80℃	Tap water, industrial water, seawater	DN40-1000
Fluoroplastic	Polytetrafluoroethylene	Stable chemical property, resistant to corrosion of boiling hydrochloric acid, sulfuric acid and concentrated base.	150℃	Highly corrosive acid, alkali and base solution	DN15-1000

PN16-electromagnetic flow meter optional models

DN (mm)	a (mm)	D（mm)	Do (mm)	n×A
15	150	95	65	4×14
20	150	105	75	4×14
25	150	115	85	4×14
32	200	140	100	4×18
40	200	150	110	4×18
50	200	165	125	4×18
65	200	185	145	4×18
80	200	200	160	8×18
100	250	220	180	8×18
125	250	250	210	8×18
150	300	285	240	8×22
200	350	340	295	12×22
250	400	405	355	12×26
300	450	460	410	12×26
350	500	520	470	16×26
400	600	580	525	16×30
450	600	640	585	20×30
500	600	715	650	20×33
600	600	840	770	20×36
700	700	910	840	24×41
800	800	1025	950	24×41
900	900	1155	1050	28×41
1000	1000	1280	1170	28×48

PN25-electromagnetic flow meter optional models

DN(mm)	a(mm)	D(mm)	Do(mm)	n×A
15	150	95	65	4×14
20	150	105	75	4×14
25	150	115	85	4×14
32	200	140	100	4×18
40	200	150	110	4×18
50	200	165	125	4×18
65	200	185	145	8×18
80	200	200	160	8×18
100	250	235	190	8×22
125	250	270	220	8×26
150	300	300	250	8×26
200	350	360	310	12×26
250	400	425	370	12×30
300	450	485	430	16×30
350	500	555	490	16×33
400	600	620	550	16×36
450	600	670	600	20×36
500	600	730	660	20×36
600	600	845	770	20×39
700	700	960	875	24×42
800	800	1085	990	24×48
900	900	1185	1090	28×48
1000	1000	1320	1210	28×55
