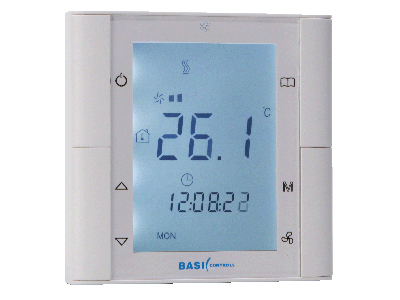

Digital Temperature Controller

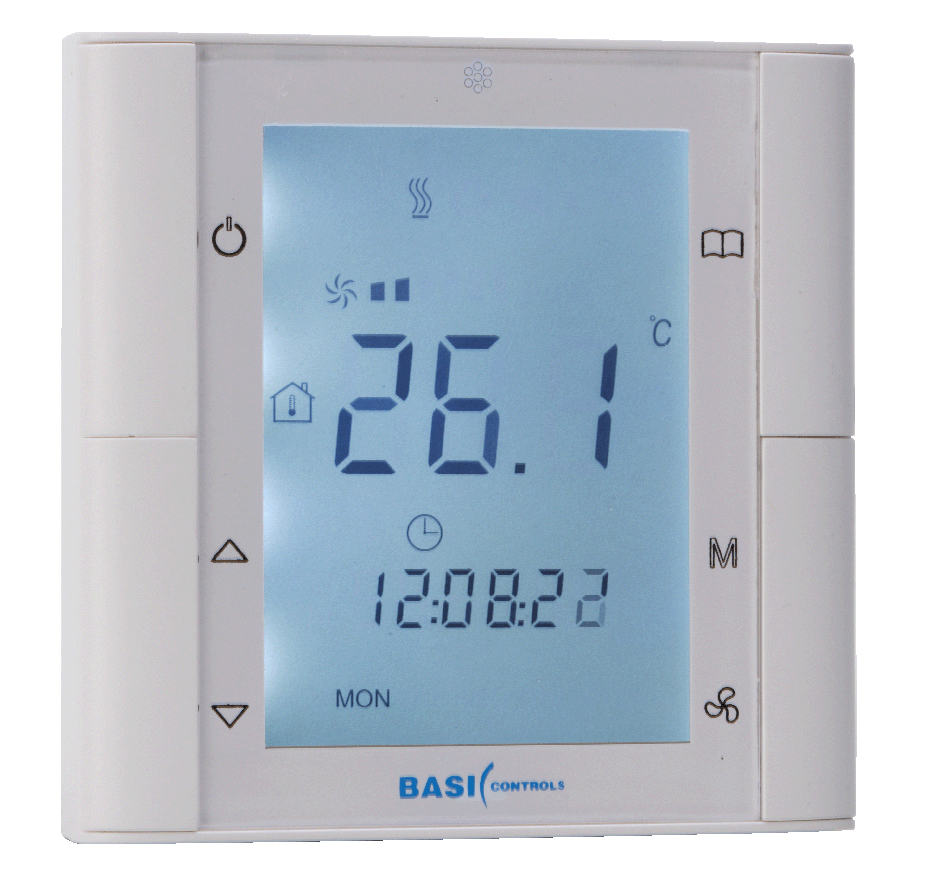

The digital temperature controller features a large LCD screen, which displays the temperature vertically and is lit by a backlight. This allows the screen to automatically adjust the brightness according to the light variation, ensuring it is easy for users to read data.
Application
Digital temperature controllers are commonly used in commercial, industrial and residential buildings for indoor temperature control of heating, cooling or year-round central air conditioning systems. It is especially suitable for fan coil units and other control systems.
| Rated voltage | AC230V |
| Frequency | 50HZ |
| Power consumption | 1.5VA |
| Rated current | 4A |
| Certification | CE |
| Temperature control range | 16～30℃ |
| Temperature control accuracy | 0.5℃ |
| Protection class | IP30 |
| Operating environment | 0～50℃, max. 95%RH |
| Storage and transportation environment | -10℃～50℃, max. 95%RH |
| Outline size | 86×86×47.6mm |
- 485 or MBUS communication interfaces.
- Available infrared remote control.
- Time-based billing
- MODBUS, Basic Controls M-BUS integrated protocol and other protocol options.
- General AC three-speed fan is supported.

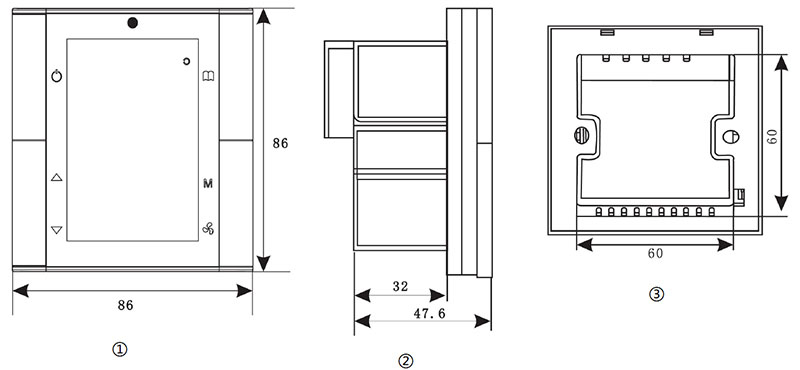

Outer dimension
① Front view ② Left view ③ Back view
