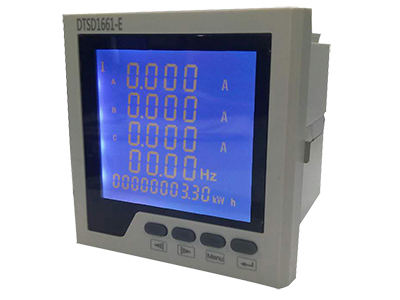

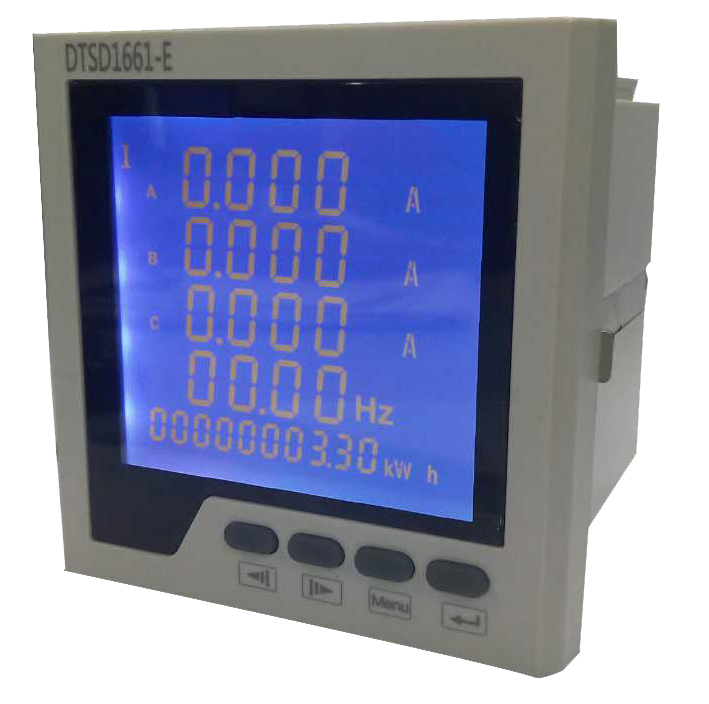

Multifunction Power Meter

This multifunctional power meter is a three-phase four-wire smart power meter, specially designed for the electrical power monitoring and control demands in power supply and distribution systems. This power meter measures active and reactive energy and all the common electric power parameters, including three-phase voltage, three-phase-current, active power, and more. In addition, this meter also features a number of features, including the accumulation of electric energy, electric energy pulse output, limit alarm, input and on-off output, transmitting output of analog, network communication and much more.

Application
Multifunctional power meters are applicable to a variety of control systems, energy management systems, substation automation, distribution network automation, industrial automation, intelligent building, distribution boxes and switch cabinets.

• Three-phase voltage: UA UB UC；UAB UBC UCA
• Three-phase current: IA IB IC
• Active power: single-phase active power and total active power
• Reactive power: single-phase reactive power and total reactive power
• Apparent power: single-phase apparent power and total apparent power
• Power factor: single-phase power factor and total power factor
• Line frequency
• Electrical energy: active energy, reactive energy
• Two electric energy pulse outputs
• Four analog outputs
• Four on-off outputs
• Four on-off inputs
