Ultrasonic Split Heat Meter, 220 Series (Brass, Threaded Type)

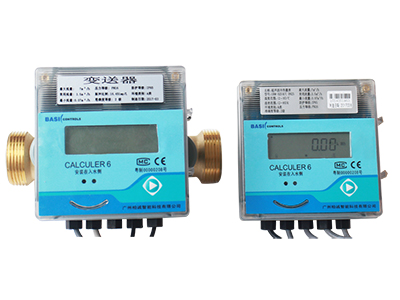

Ultrasonic split heat meter, 220 series (brass, threaded type) has a brass line, featuring outstanding resistance to oxidation and wear. Besides, it is less affected by flow corrosion and compact, of longer service life.
Parameters- Line material: brass
- Connection type: threaded type
- Nominal diameter range: DN15-DN40
- Pressure rating: PN16/PN25
- Water-proof grade: IP65
- Power supply: built-in lithium battery or DC240V+ built-in lithium battery

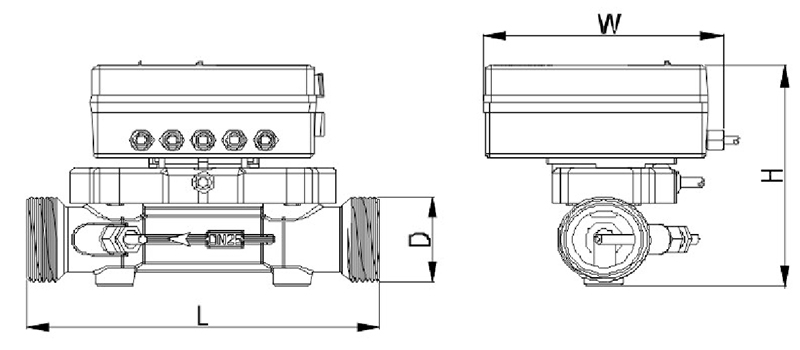

| Flow rate code | Nominal diameter DN | Length without connecting pipe L | Connecting thread D | Compact type meter height H | Frame type meter height H | Meter width W | Weight | Overload flow rate | Normal flow rate | Minimal Flow rate |
| N2.5 | 20mm | 130mm | G1B | 101mm | 156mm | 108mm | 1.3KG | 5qmax(m3/h) | 2.5qp(m3/h) | 0.05qmin(m3/h) |
| N 3.5 | 25mm | 160mm | G1 1/4B | 106mm | 161mm | 108mm | 1.8KG | 7qmax(m3/h) | 3.5qp(m3/h) | 0.07qmin(m3/h) |
| N 6 | 32mm | 180mm | G1 1/2B | 113mm | 168mm | 108mm | 2.3KG | 12qmax(m3/h) | 6qp(m3/h) | 0.12qmin(m3/h) |
| N10 | 40mm | 200mm | G2B | 121mm | 176mm | 108mm | 3.1KG | 20qmax(m3/h) | 10qp(m3/h) | 0.2qmin(m3/h) |
