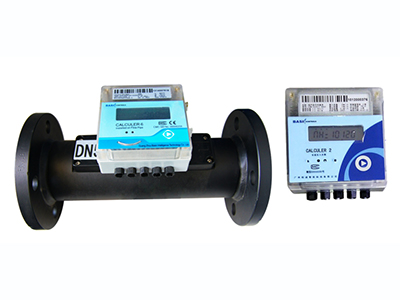

Ultrasonic Split Heat Meter, 220 Series (Carbon steel, Flange Type)
Ultrasonic split heat meter, 220 series (carbon steel, flange type) features a carbon steel made line. This helps it to maintain excellent physical and mechanical properties even working at high temperature.
Parameters- Line material: carbon steel
- Connection type: flange type
- Nominal diameter range: DN250-DN1000
- Power supply: built-in lithium battery or DC240V+ built-in lithium battery

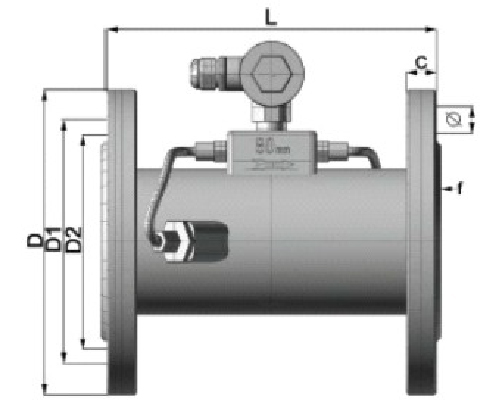

| Nominal diameter (mm) | Nominal pressure | Length L(mm) | Flange outer diameter D(mm) | Bolt circle diameter D1 (mm) | Bolt hole diameter X count | Sealing face D2 | Height of sealing face f(mm) | Flange thickness C(mm) |
| 250 | 1.6 | 450 | 405 | 355 | 26x12 | 320 | 3 | 29 |
| 300 | 1.6 | 500 | 460 | 410 | 26x12 | 378 | 4 | 32 |
| 350 | 1.6 | 550 | 520 | 470 | 26x16 | 438 | 4 | 35 |
| 400 | 1.6 | 600 | 580 | 525 | 30x16 | 490 | 4 | 38 |
| 450 | 1.6 | 700 | 640 | 585 | 30x20 | 550 | 4 | 42 |
| 500 | 1.6 | 800 | 715 | 650 | 33x20 | 610 | 4 | 46 |
| 600 | 1.6 | 1000 | 840 | 770 | 36x20 | 725 | 5 | 55 |
| 700 | 1.6 | 1100 | 910 | 840 | 36x24 | 795 | 5 | 63 |
| 800 | 1.6 | 1200 | 1025 | 950 | 39x24 | 900 | 5 | 74 |
| 900 | 1.6 | 1300 | 1125 | 1050 | 39x28 | 1000 | 5 | 82 |
| 1000 | 1.6 | 1400 | 1255 | 1170 | 42x28 | 1115 | 5 | 90 |
PN25-External dimension
| Nominal diameter (mm) | Nominal pressure (Mpa) | Length L(mm) | Flange outer diameter D(mm) | Bolt circle diameter D1 (mm) | Bolt hole diameter X count | Sealing face D2 | Height of sealing face f(mm) | Flange thickness C(mm) |
| 250 | 2.5 | 450 | 425 | 370 | 30x12 | 335 | 3 | 35 |
| 300 | 2.5 | 500 | 485 | 430 | 30x16 | 395 | 4 | 38 |
| 350 | 2.5 | 550 | 555 | 490 | 33x16 | 450 | 4 | 42 |
| 400 | 2.5 | 600 | 620 | 550 | 36x16 | 505 | 4 | 48 |
| 450 | 2.5 | 700 | 670 | 600 | 36x20 | 555 | 4 | 54 |
| 500 | 2.5 | 800 | 730 | 660 | 36x20 | 615 | 4 | 58 |
| 600 | 2.5 | 1000 | 845 | 770 | 39x20 | 720 | 5 | 68 |
| 700 | 2.5 | 1100 | 960 | 875 | 42x24 | 820 | 5 | 85 |
| 800 | 2.5 | 1200 | 1085 | 990 | 48x24 | 930 | 5 | 95 |
