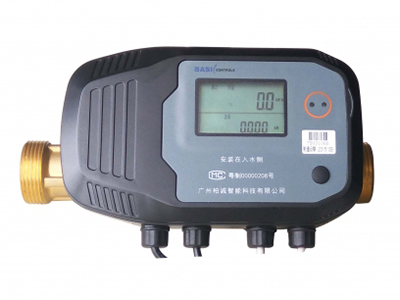

Ultrasonic Heat Meter, Remote Control (Brass, Threaded Type)

Ultrasonic Heat Meter, Remote Control (Brass, Threaded Type)

Other than metering performance, the ultrasonic heat meter, remote control (brass, threaded type) also has the functions of controlling the opening and closing of valve via wireless connection with indoor temperature controller and management system, as well as uploading the indoor temperature to the management system.

This series heat meter is powered by M-Bus and battery, efficiently enhancing the service life.

In addition, this heat meter adopts clock chips to provide ultra-low power consumption, capable of detecting low flow rate.

Parameters
  • Line material: brass
  • Connection type: threaded type
  • Nominal diameter range: DN20-DN25
  • Pressure rating: PN16
  • Water-proof grade: IP65
  • Power supply for valve: DC24V
  • Power supply: (spare lithium battery) M-Bus
  • Max. Current of valve: 30mA
  • Resistance line length of temperature sensor: 1.5m
  • Communication: RF433MHz wireless communication
  • Wireless sending power: 17dBm
  • M-bus quiescent current: 2.5mA
  • M-Bus communication current: 12mA
Optional models
Ultrasonic Heat Meter, Remote Control (Brass, Threaded Type)

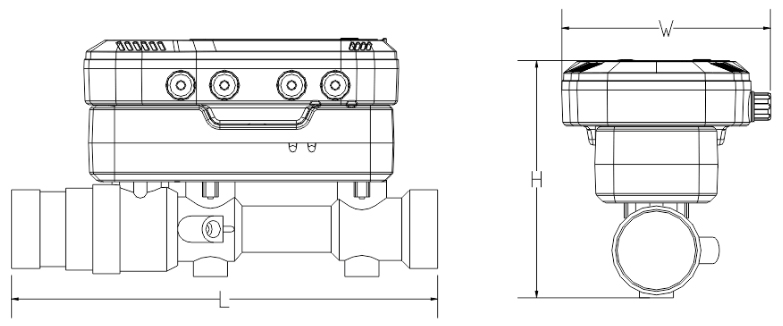

Flow code Nominal diameter DN Length without connecting pipe L Connecting thread D Meter height H Meter width W Meter weight Overload flow rate Normal flow rate Minimal flow rate
N2.5 20mm 197mm G1B 122mm 110mm 1.4KG 5qmax(m3/h) 2.5qp(m3/h) 0.05qmin(m3/h)
N 3.5 25mm 225mm G1 1/4B 125mm 110mm 3.5KG 7qmax(m3/h) 3.5qp(m3/h) 0.07qmin(m3/h)
