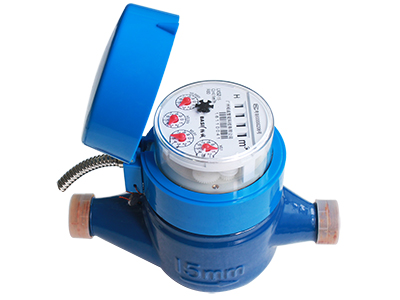

T30 Multi Jet Cold Water Meter

The T30 multi jet cold water meter is intended for measuring cold water with a temperature of 0.1～+50℃.

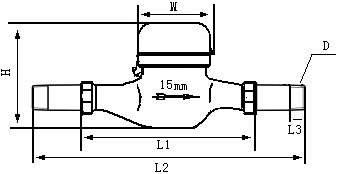

Horizontal installed T30 Multi Jet Cold Water Meter optional models

Nominal diameter	L1 (mm)	L2 (mm)	L3 (mm)	H (mm)	W (mm)	D (mm)	Overload flow rate Q4 (m³/h)	Constant flow rate Q3(m³/h)	Transitional flow rate Q2(m³/h)	Minimal flow rate Q1(m³/h)
DN15	165	255	14	123	82	R1/2″	3.125	2.5 m	0.05	0.0313
DN20	195	295	16	123	82	R3/4″	5	4 m	0.08	0.05
DN25	225	345	18	125	86	R1″	7.875 m	6.3 m	0.126	0.0788
DN32	230	365	20	137	90	R1 1/4″	12.5 m	10 m	0.2 m	0.125
DN40	245	374	21	180	120	R1 1/2″	20m	16	0.32	0.2

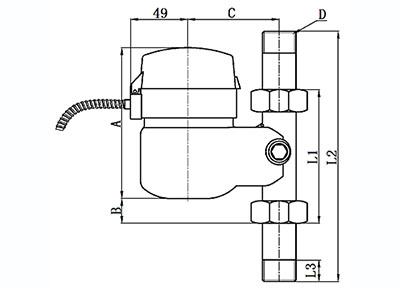

Vertical installed T30 Multi Jet Cold Water Meter optional models

Nominal diameter	L1 (mm)	L2 (mm)	L3 (mm)	A (mm)	B (mm)	C (mm)	D (mm)	Overload flow rate Q4 (m³/h)	Constant flow rate Q3(m³/h)	Transitional flow rate Q2(m³/h)	Minimal flow rate Q1(m³/h)
DN15	165	255	14	130	13	77.5	R1/2″	3.125	2.5 m	0.05	0.0313
DN20	195	295	16	130	17	77.5	R3/4″	5	4 m	0.08	0.05
DN25	225	345	18	140	13	87.5	R1″	7.875 m	6.3 m	0.126	0.0788

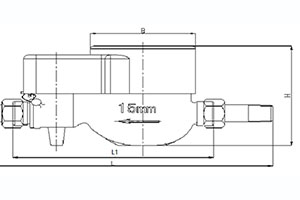

Horizontal installed valve-control T30 Multi Jet Cold Water Meter optional models

Nominal diameter	L1 (mm)	L2 (mm)	B (mm)	H (mm)	D (mm)	d (mm)	Overload flow rate Q4 (m³/h)	Constant flow rate Q3(m³/h)	Transitional flow rate Q2(m³/h)	Minimal flow rate Q1(m³/h)
DN15	165	255	13	77.5	G3/4	R1/2″	3.125	2.5 m	0.05	0.0313
DN20	195	295	17	77.5	G1	R3/4″	5	4 m	0.08	0.05
DN25	225	345	13	87.5	G1 1/2	R1″	7.875 m	6.3 m	0.126	0.0788
