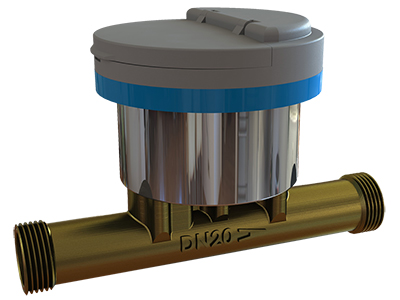

T50 Ultrasonic Cold Water Meter
The T50 ultrasonic cold water meter is adaptable to an environmental temperature of 0.1～+50℃, making it suitable for cold water measurement.
Parameters- Line material: brass
- Connection type: threaded type
- Nominal diameter range: DN15-DN40
- Temperature grade: T50
- Pressure rating: PN16
- Water-proof grade: IP65

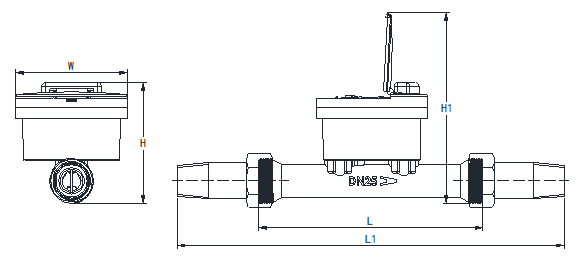

| Nominal diameter | L Length (mm) | L1Total length with the connecting pipe(mm) | W(mm) | H1Height with opened cover (mm) | H height(mm) | Sensor thread | Connecting thread | Constant flow rate Q3(m³/h) | Transitional flow rate Q2(m³/h) | Minimal flow rate Q1(m³/h) |
| DN15 | 165 | 261 | 110 | 167 | 102 | G3/4" | R1/2 | 2.5 | 0.04 | 0.025 |
| DN20 | 195 | 301 | 110 | 172 | 107 | G1" | R3/4" | 4 | 0.07 | 0.04 |
| DN25 | 225 | 347 | 110 | 177 | 112 | G1 1/4" | R1" | 6.3 | 0.1 | 0.063 |
| DN32 | 230 | 356 | 110 | 186 | 121 | G1 1/2" | R1 1/4" | 10 | 0.16 | 0.1 |
| DN40 | 245 | 376 | 110 | 197 | 132 | G 2" | R1 1/2" | 16 | 0.26 | 0.16 |
