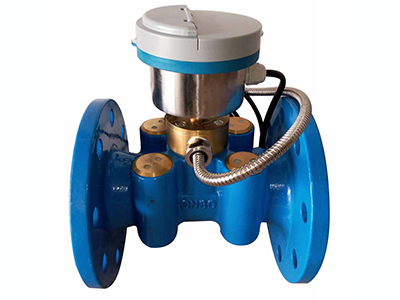

T90 Ultrasonic Hot Water Meter
T90 ultrasonic hot water meter uses four-channels for measurement, which not only enhances the measuring accuracy, but lowers pipe installation requirements. This makes it more applicable to installation environments in harsh working conditions.
This hot water meter has a carbon steel made line, which ensures an outstanding measuring performance, even when working at high temperatures.
Parameters- Line material: carbon steel
- Connection type: flange type
- Nominal diameter range: DN50-DN300
- Temperature grade: T90
- Pressure rating: PN16
- Water-proof grade: IP65

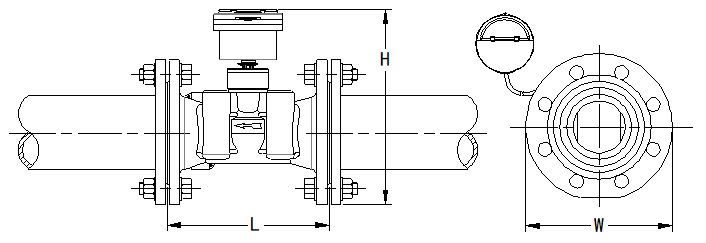

| Meter size | L Length (mm) | W Width (mm) | H Total height (mm) | Constant flow rate Q3(m³/h) | Transitional flow rate Q2(m³/h) | Minimal flow rate Q1(m³/h) |
| DN50 | 200 | 165 | 266 | 25 | 0.4 | 0.25 |
| DN65 | 200 | 185 | 279 | 40 | 0.64 | 0.4 |
| DN80 | 225 | 200 | 295 | 63 | 1 | 0.63 |
| DN100 | 250 | 220 | 318 | 100 | 1.6 | 1 |
| DN125 | 250 | 250 | 351 | 160 | 2.6 | 1.6 |
| DN150 | 300 | 285 | 386 | 250 | 4 | 2.5 |
| DN200 | 350 | 340 | 441 | 400 | 6.4 | 4 |
| DN250 | 450 | 405 | 483 | 630 | 10 | 6.3 |
| DN300 | 500 | 460 | 581 | 1000 | 16 | 10 |
