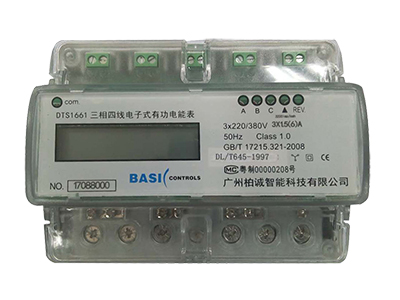

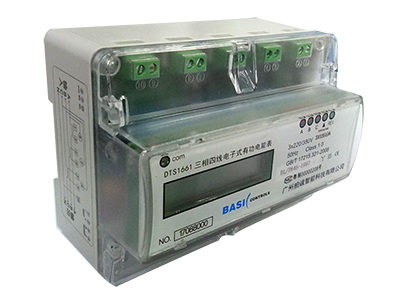

DIN Rail 3 Phase Energy Meter (7P)
The DIN rail 3 phase energy meter (7P) is a simple energy meter. The 7 digit LCD displays the total active energy. This energy meter has 6 LEDS, with yellow, green and red indicating the power state, white indicating energy pulse signal and yellow COM indicating RS485 communication.
The DIN rail 3 phase energy meter is a newly developed single-phase two-wire active energy meter that utilizes a micro electronic technique and large application specific integrated circuit, digital sampling processing technique and SMT process. It is able to directly measure the active energy consumption in three-phase AC network with a rated frequency of 50Hz or 60Hz.
Mechanical parameters| Voltage | 3×220V/130V |
| Ambient humidity | 0.85 |
| Communication protocol | MODBUS-RTU |
| Frequency | 50Hz/60Hz |
| Voltage circuit power consumption | 1.0W 5VA |
| Current circuit power consumption | 1VA |
| Outline dimension | 88mm×75mm×73.5mm |
| Recommended installation height | Over 1.8m |
| Class | 1.0 class |
| Storage and transportation temperature | -25～70℃ |
| Standard working temperature range | -15～55℃ |
| Weight | 630g |
| Minimal life span | 10 years |

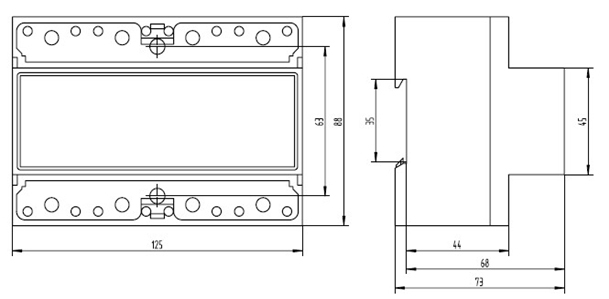

Outer dimension
