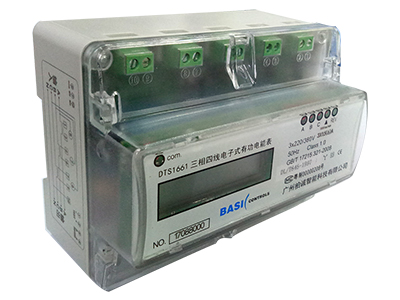

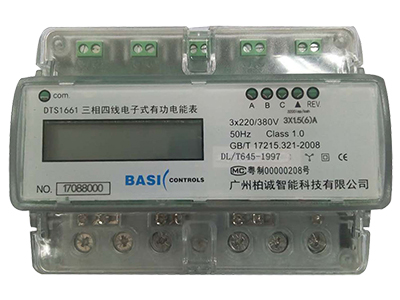

DIN Rail 3 Phase Energy Meter with Cut Off Function (7P)
The DIN rail 3 phase energy meter with cut off function (7P) is an improved version of the DIN rail 3 phase energy meter (7P). It measures the total active energy, remote cut off and the reading of the on-off state. This energy meter is equipped with 4 LEDs to indicate the power state of A, B and C phases and the electric energy pulse signal.
The DIN rail 3 phase energy meter with cut off function uses a 6+1 digits stepping counter to record the accumulated power consumption. An optional 7 digit LCD display is also available for customers with two display modes of 5+2 and 6+1 digits (99999.99kWh, 999999.9kWh).
Mechanical parameters| Voltage | 3×220V/130V |
| Ambient humidity | 75% |
| Communication interface | RS485 |
| Communication protocol | MODBUS-RTU, DL/T645 |
| Frequency | 50Hz/60Hz |
| Circuit power consumption | 1.0W 5VA |
| Outline dimension | 125mm×97mm×77mm |
| Recommended installation height | Over 1.8m |
| Class | 1.0 class |
| Storage and transportation temperature | -25～70℃ |
| Maximum working temperature range | -25～+55℃ |
| Standard working temperature range | -10～+45℃ |

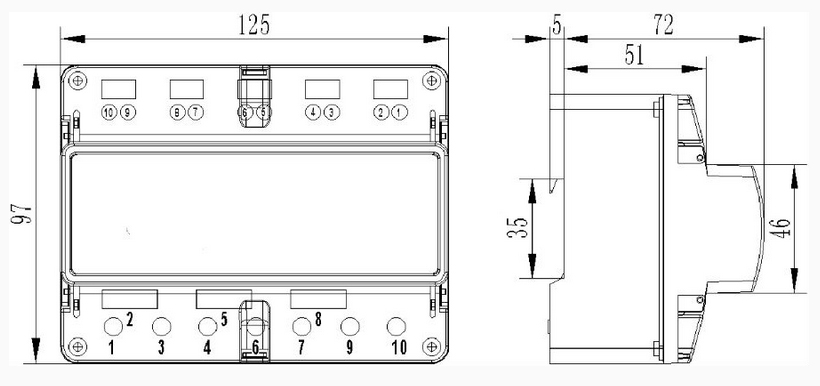

Outer dimension
