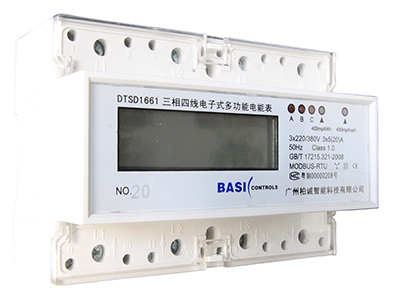

DIN Rail 3 Phase 4 Wire Energy Meter (7P)
Compared to a DIN rail 3 phase energy meter (7P), the DIN rail 3 phase 4 wire energy meter (7P) allows for a wider reading range. The 7 digit LCD display supports the reading of the total active energy, A/B/C phase current, A/B/C phase voltage, A/B/C phase active power, total active power, A/B/C phase power factor, total power factor and line frequency.
Mechanical parameters| Voltage | 3×220V/130V |
| Ambient humidity | 85% |
| Communication protocol | MODBUS-RTU |
| Frequency | 50Hz/60Hz |
| Voltage circuit power consumption | 1.0W 5VA |
| Current circuit power consumption | 1VA |
| Outline dimension | 88mm×75mm×73.5mm |
| Recommended installation height | Over 1.8m |
| Class | 1.0 class |
| Storage and transportation temperature | -25～70℃ |
| Standard working temperature range | -15～55℃ |
| Weight | 630g |
| Minimal life span | 10 years |

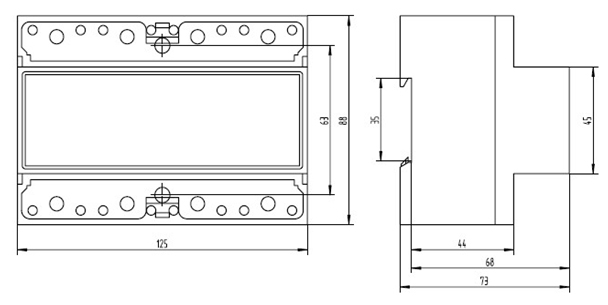

Outer dimension
