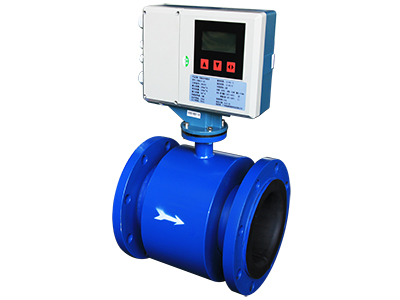

Compact Electromagnetic Heat Meter

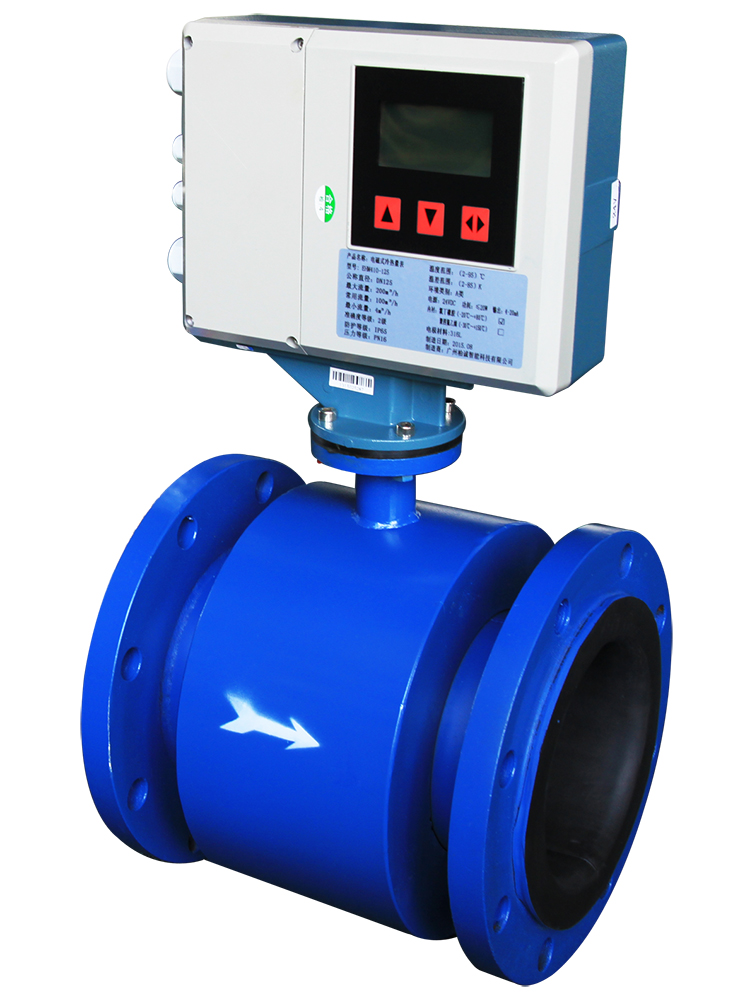

Compact electromagnetic heat meters feature an integrated structure, which saves significant installation space. Basic Controls offers heat meters in different pressure grades and lining materials to meet different client application requirements.

Parameters

Line material: carbon steel
Connection mode: flange connection
Nominal diameter: DN15-DN1000
Pressure class: PN16 or PN25 (optional)
Water-proof grade: IP65 (IP68 can be customized)

Lining material options

Lining material	Name	Property	Max. Operating temperature	Applicable fluid	Applicable nominal diameter
Rubber	Neoprene	Medium wear resistance, resistant to low concentration acid, alkali and base corrosion	80℃	Tape water, industrial water, seawater	DN40-1000
Fluoroplastics	Polytetrafluoroethylene	Stable chemical property, resistant to corrosion of boiling hydrochloric acid, sulfuric acid and concentrated alkali	150℃	Highly corrosive acid, alkali and base liquids	DN15-1000

PN16-Compact Electromagnetic Heat Meter Options

DN (mm)	a (mm)	D (mm)	Do (mm)	n×A
15	150	95	65	4×14
20	150	105	75	4×14
25	150	115	85	4×14
32	200	140	100	4×18
40	200	150	110	4×18
50	200	165	125	4×18
65	200	185	145	4×18
80	200	200	160	8×18
100	250	220	180	8×18
125	250	250	210	8×18
150	300	285	240	8×22
200	350	340	295	12×22
250	400	405	355	12×26
300	450	460	410	12×26
350	500	520	470	16×26
400	600	580	525	16×30
450	600	640	585	20×30
500	600	715	650	20×33
600	600	840	770	20×36
700	700	910	840	24×41
800	800	1025	950	24×41
900	900	1155	1050	28×41
1000	1000	1280	1170	28×48

PN25-Compact Electromagnetic Heat Meter Optional Models

DN (mm)	a (mm)	D (mm)	Do (mm)	n×A
15	150	95	65	4×14
20	150	105	75	4×14
25	150	115	85	4×14
32	200	140	100	4×18
40	200	150	110	4×18
50	200	165	125	4×18
65	200	185	145	8×18
80	200	200	160	8×18
100	250	235	190	8×22
125	250	270	220	8×26
150	300	300	250	8×26
200	350	360	310	12×26
250	400	425	370	12×30
300	450	485	430	16×30
350	500	555	490	16×33
400	600	620	550	16×36
450	600	670	600	20×36
500	600	730	660	20×36
600	600	845	770	20×39
700	700	960	875	24×42
800	800	1085	990	24×48
900	900	1185	1090	28×48
1000	1000	1320	1210	28×55

Compact Electromagnetic Heat Meter Range

Nominal diameter	Minimal flow rate (m³/h)	Normal flow rate (m³/h)	Overload flow rate (m³/h)
DN15	0.12	1.5	3
DN20	0.22	2.5	5
DN25	0.35	3.5	7
DN32	0.57	6	12
DN40	0.9	10	20
DN50	1.4	15	30
DN65	2.3	25	50
DN80	3.6	40	80
DN100	5.6	60	120
DN125	8.8	100	200
DN150	12.7	150	300
DN200	22.6	250	500
DN250	35.3	400	800
DN300	50.8	600	1200
DN350	69.2	800	1600
DN400	135	1000	2000
DN450	171	1250	2500
DN500	211	1500	3000
DN600	305	2000	4000
DN700	415	2500	5000
DN800	542	3000	6000
DN900	686	4000	8000
DN1000	847	5000	10000
