Ultrasonic Flow Meter (Carbon Steel, Flange Type)

Ultrasonic Flow Meter (Carbon Steel, Flange Type)

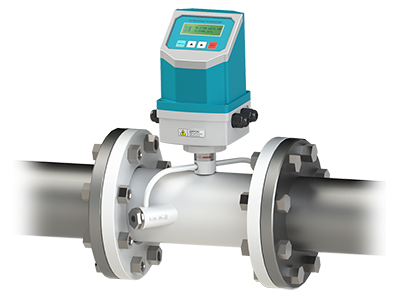

This ultrasonic flow meter (cast iron, flange type) is specially designed for large pipelines with a nominal diameter of 250mm-1000mm. It is used to measure the flow rate in an open type channel like irrigational canals, huge pipes and other locations.

This flow meter’s line is made using carbon steel, featuring a higher hardness. This gives it a better wear resistance, and a longer lifespan that does not change, whether it is used in open air or underwater.

Parameters
  • Line material: cast iron
  • Connection type: flange type
  • Nominal diameter range: DN50-DN1000
  • Pressure rating: PN25
  • Water-proof grade: IP65
Optional models
Ultrasonic Flow Meter (Carbon Steel, Flange Type)

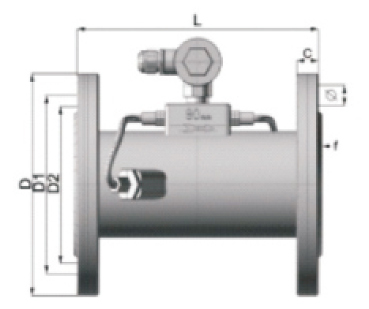

Nominal diameter/DN Pressure/ MPa Length/ L(mm) Outer flange diameter/ D(mm) Bolt center diameter/ D1(mm) Bole hole size×count/ Φx×n Sealing surface diameter/ D2 Sealing surface thickness/f Flange thickness /c(mm)
50 1.6 280 165 125 18b×4 99 3 20
65 1.6 200 185 145 18h×4 118 3 20
80 1.6 225 200 160 18×4 132 3 20
100 1.6 250 220 180 18×8 156 3 22
125 1.6 275 250 210 18×8 184 3 22
150 1.6 300 285 240 22×8 211 3 24
200 1.6 350 340 295 22×12 266 3 24
250 1.6 450 405 355 26×12 319 3 26
300 1.6 500 460 410 26×12 370 4 28
350 1 550 505 460 22×16 428 4 30
400 1 600 565 515 22×16 482 4 30
450 1 700 615 565 22×20 532 4 30
500 1 800 670 620 22×20 585 4 32
600 1 1000 780 725 22×20 685 5 36
700 0.6 1100 860 810 22×24 772 4 40
800 0.6 1200 975 920 22×24 878 4 44
900 0.6 1300 1075 1020 22×24 9781 4 48
1000 0.6 1400 1175 1120 30×28 1078 4 52
