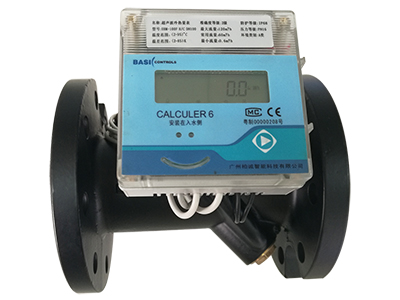

Ultrasonic Flow Meter (Cast Iron, Flange Type)

Ultrasonic Flow Meter (Cast Iron, Flange Type)

Ultrasonic flow meters (cast iron, flange type) are intended for large pipes with a 50mm-200mm nominal diameter, and feature an easy disassembly and installation.

This line of Basic Controls ultrasonic flow meters is manufactured by cast iron, giving the flow meter excellent, constant physical and mechanical properties in high temperature working conditions.

Parameters
  • Line material: cast iron
  • Connection type: flange type
  • Nominal diameter range: DN50-DN200
  • Pressure rating: PN16 (can be customized)
  • Water-proof grade: IP65
Optional models
Ultrasonic Flow Meter (Cast Iron, Flange Type)

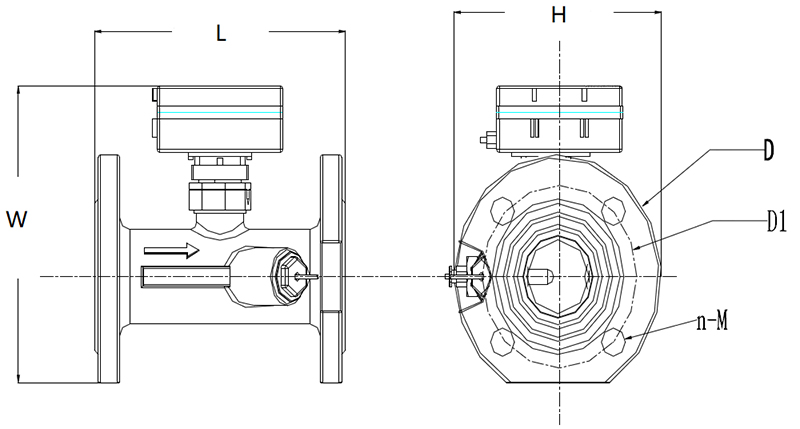

Flow codeNominal diameter/ DN Height/HOuter flange diameter/ D Length/ L Bolt central diameter /D1 Bolt count of each side-thread/ n-M Overload flow rateNormal flow rateMin. Flow rateTransitionalflow rate
N15 50mm 250mm 165mm 200mm 125mm 4-M16 30m3/h 15m3/h 0.3m3/h 1.5m3/h
N 25 65mm 265mm 185mm 200mm 145mm 8-M16 50m3/h 25m3/h 0.5qm3/h 2.5m3/h
N 40 80mm 280mm 200mm 225mm 160mm 8-M16 80m3/h 40m3/h 0.8m3/h 4m3/h
N60 100mm 310mm 220mm 250mm 180mm 8-M16 120m3/h 60m3/h 1.2m3/h 6m3/h
N100 125mm 330mm 250mm 250mm 210mm 8-M16 200m3/h 100m3/h 2.0m3/h 10m3/h
N150 150mm 360mm 285mm 300mm 240mm 8-M20 300m3/h 150m3/h 3.0m3/h 15m3/h
N250 200mm 405mm 340mm 350mm 295mm 12-M20 500m3/h 250m3/h 5.0m3/h 25m3/h
