Meters and Measurement Devices for Exact Consumption Data Acquisition

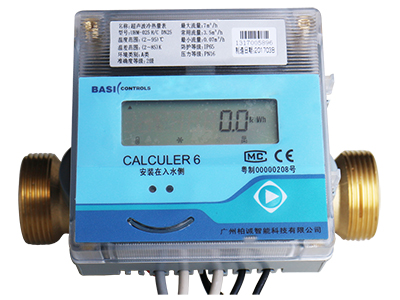

Ultrasonic Flow Meter (Brass，Threaded Type)

Ultrasonic Flow Meter (Brass，Threaded Type)

Ultrasonic flow meters (brass, threaded type) are applicable to pipes with a nominal diameter of 20mm-40mm. With a compact and delicate shape, they save installation space.

Basic Controls uses brass to manufacture these ultrasonic flow meter. This allows the flow meter to be less affected by the impact and corrosion of water flow, and give it a longer life span.

Parameters
  • Line material: brass
  • Connection type: threaded type
  • Nominal diameter range: DN20-DN40
  • Pressure rating: PN16 (can be customized)
  • Water-proof grade: IP65
Optional models
Ultrasonic Flow Meter (Brass，Threaded Type)

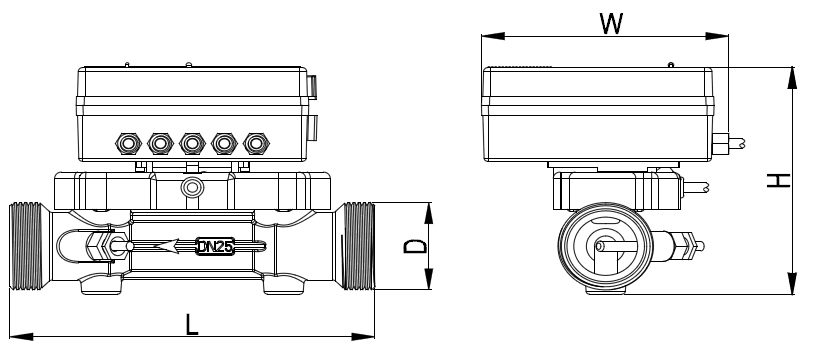

Flow codeNominal diameter DN Length without connecting pipeScrew thread D Flow meter height H Flow meter width W Flow meter weightOverload flow rate
N2.5 20mm 130mm G1B 101mm 108mm 1.3KG 5m3/h
N 3.5 25mm 160mm G1 1/4B 106mm 108mm 1.8KG 7m3/h
N 6 32mm 180mm G1 1/2B 113mm 108mm 2.3KG 12m3/h
N10 40mm 200mm G2B 121mm 108mm 3.1KG 20m3/h
