DIN Rail Single Phase Energy Meter (4P)
The DIN rail single phase energy meter (4P) offers a simple structure, and displays the measured total active energy consumption with a 7 digit LCD display.
This single phase energy meter has a 4P width (namely 12.5mm module), which meets JB/T7121-1993 standards.
Technical parameters| Voltage | 220V/230V±20% |
| Installation type | DIN rail |
| Ambient humidity | ≤85% |
| Communication interface | RS485 |
| Outline dimension | 88mm×75mm×73.5mm |
| Weight | 280g |
| Recommended installation height | Over 1.8m |
| Class | 1.0 class |
| Storage temperature | -15～+55℃ |
| Standard working temperature range | -20～+75℃ |
| Current circuit power consumption | 1.0W 5VA |
| Current specifications | 1.5(6)A-connecting to CT、10(40)A、15(60)A、 20(80)A、30(100)A |
| Life span | ＞10 years |

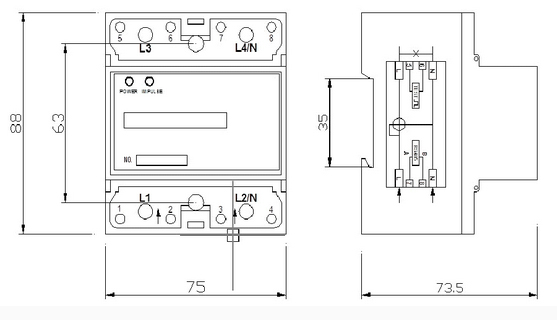

Outer dimension
