DIN Rail Single Phase Energy Meter with Cut Off Function (4P)

  • DIN Rail Single Phase Energy Meter with Cut Off Function (4P)
  • DIN Rail Single Phase Energy Meter with Cut Off Function (4P)

The DIN rail single phase energy meter with cut off function (4P) is an improved version of the DIN rail single phase energy meter (4P). It renders the measurement of total active energy, remote cut-off and the reading of the gate status.

Technical parameters
Voltage 220V
Ambient humidity75%
CommunicationinterfaceRS485
Communication protocolMODBUS-RTU, DL/T645
Frequency 50Hz
Outline dimension89mm×75mm×72mm
Recommended installation heightOver 1.8m
Class 1.0 class
Storage temperature-10～+45℃
Standard working temperature range-25～+70℃
Max. working temperature range-25～+55℃
Current circuit power consumption1.0W 5VA
Min. Service life10 years
External current specifications1.5(6)A-connecting to CT
Internal current specifications10(40)A、15(60)A、20(80)A

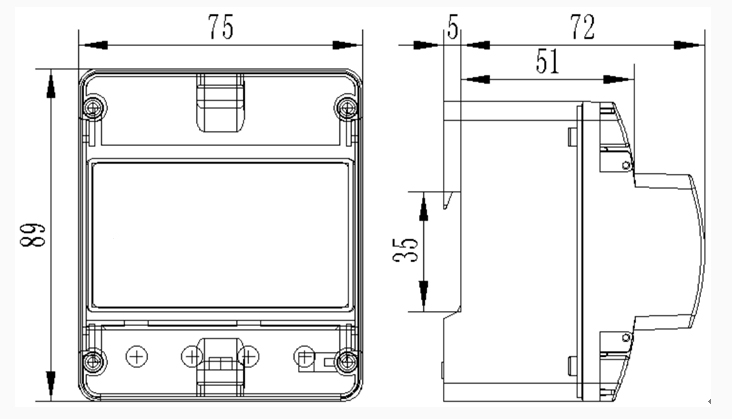

Outer dimension

DIN Rail Single Phase Energy Meter with Cut Off Function (4P)
