DIN Rail Multifunction Energy Meter, Single Phase Electricity Meter (4P)

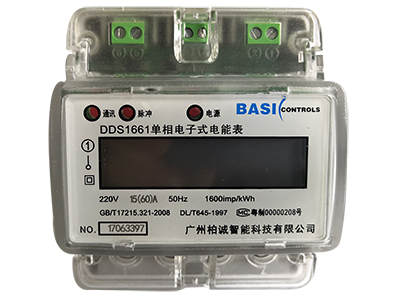

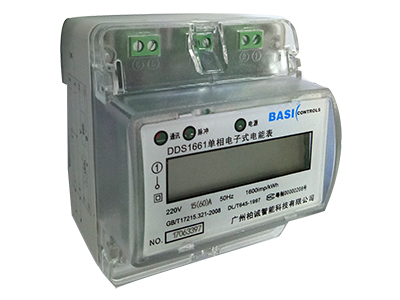

  • DIN Rail Single Phase Energy Meter with Cut Off Function (4P)
  • DIN Rail Single Phase Energy Meter with Cut Off Function (4P)

Compared to a DIN rail single phase energy meter (4P), this DIN rail multifunctional energy meter features a larger range of functions. A 7 digit LCD display allows for the reading of active energy, voltage, current, active power, power factor and grid frequency.

This single phase electricity meter has a 4P width (12.5mm module), in line with JB/T7121-1993 standards.

Technical parameters
Voltage 220V/130V
Installation type DIN rail
Ambient humidity 0.85
Communication interface RS485
Outline dimension 88mm×75mm×73.5mm
Weight 280g
Recommended installation height Over 1.8m
Class 1.0 class
Storage temperature -15～+55℃
Standard working temperature range -20～+75℃
Current circuit power consumption 1.0W 5VA
Current specifications 1.5(6)A-connecting to CT、10(40)A、15(60)A、 20(80)A、30(100)A
Min. Service life 10 years

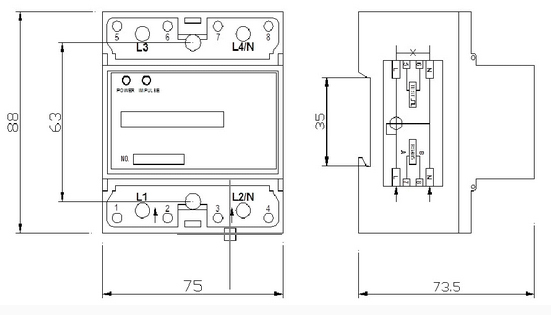

Outer dimension

DIN Rail Multifunction Energy Meter, Single Phase Electricity Meter (4P)
